Timberfast Winged Self Drilling Screws – Countersunk BZP

Timberfast Winged Self Drilling Screws – Countersunk BZP

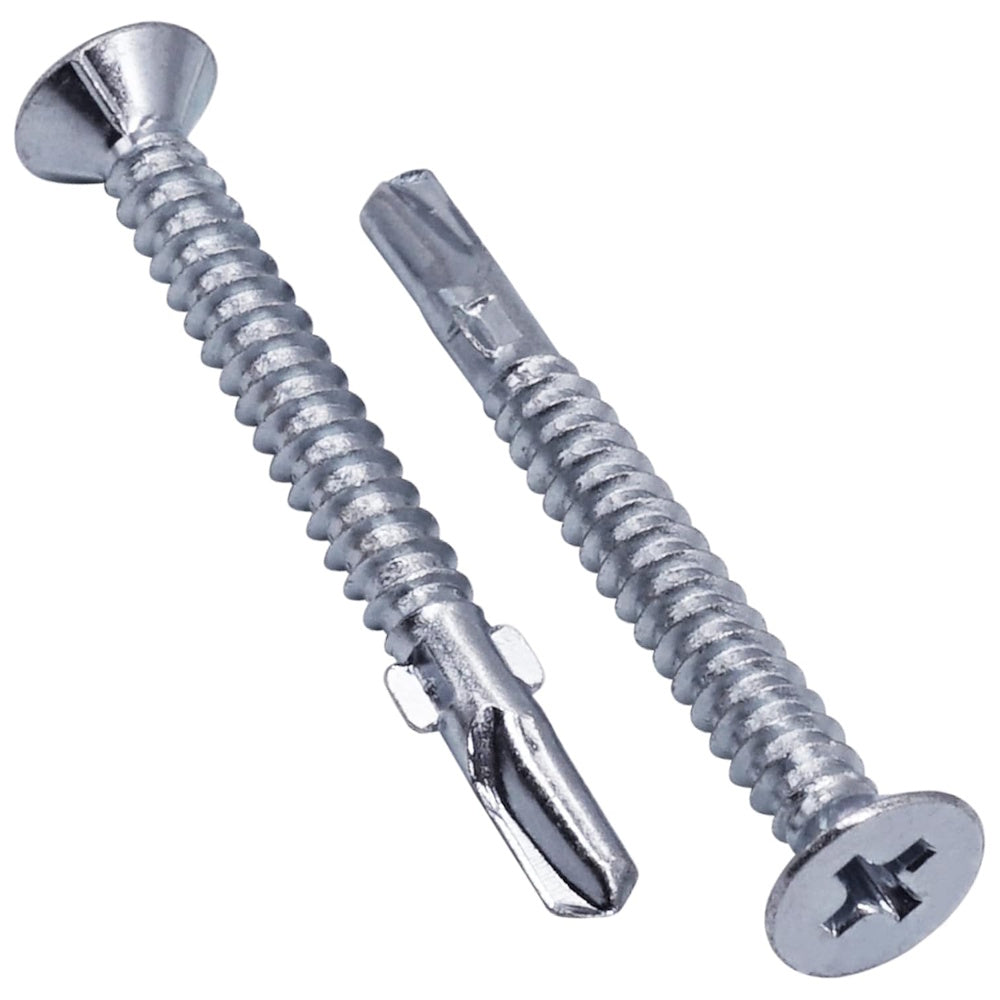

Timberfast® light-section self-drilling screws manufactured from case-hardened steel with a zinc plated Cr3 finish, designed for fixing timber to suitable light-gauge steel sections.

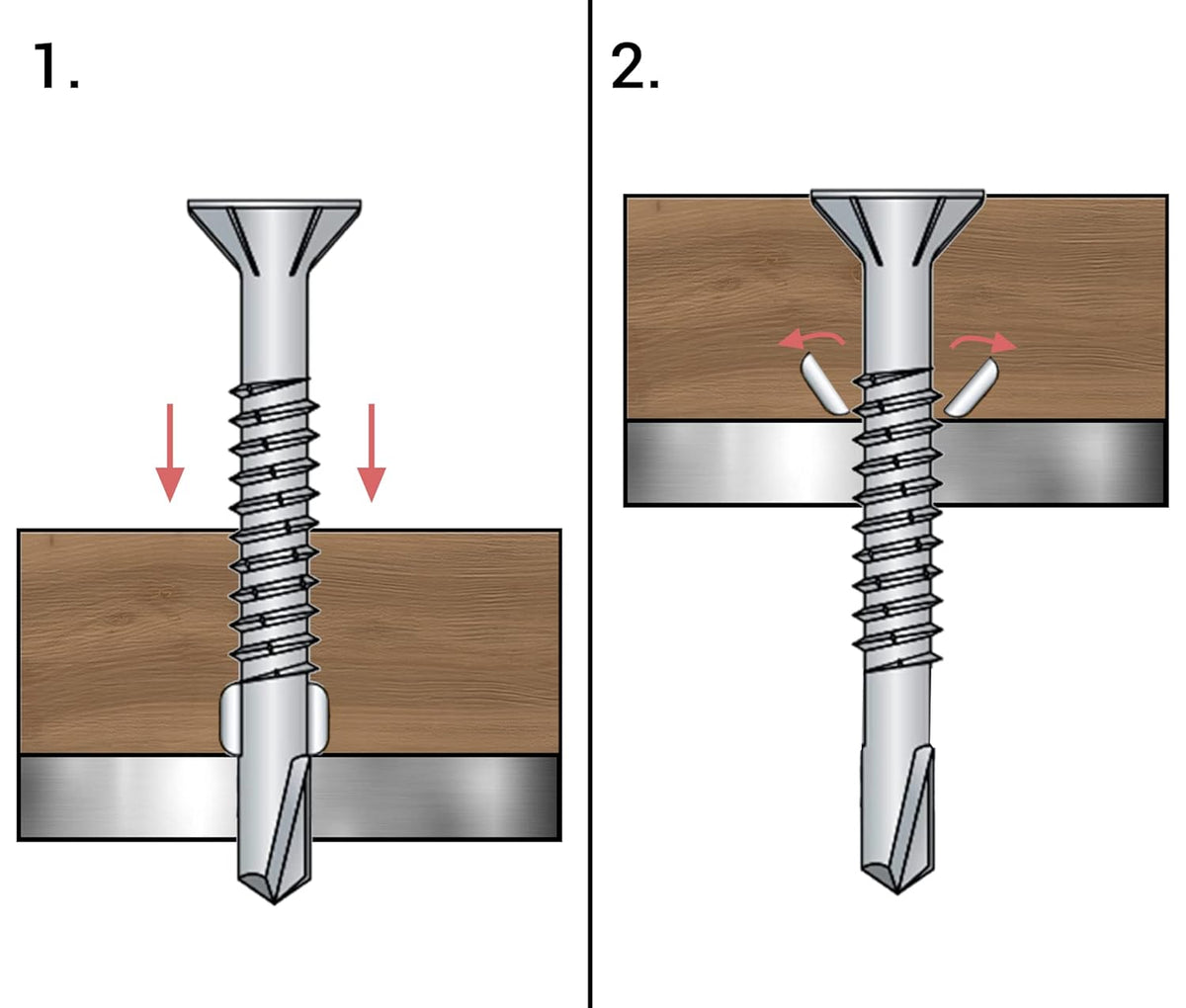

Each screw features a self-drilling point with wings that create clearance through the timber before reaching the steel. The wings are designed to break away on contact with the metal, allowing the screw threads to engage.

The countersunk head incorporates ribs to assist with countersinking into suitable timber, helping achieve a flush fixing.

Features:

Timberfast® light-section design

Countersunk head with countersinking ribs

Winged self-drilling point

Cross recess H (Phillips-type) drive

Case-hardened steel construction

Zinc plated Cr3 finish

5.5mm nominal screw diameter

Designed for timber-to-light-section-steel applications

Available Sizes:

5.5mm × 38mm

5.5mm × 45mm

5.5mm × 50mm

5.5mm × 60mm

5.5mm × 70mm

5.5mm × 80mm

Technical Information:

Product Range: Timberfast®

Type: Winged Self Drilling Screw

Head: Countersunk with Ribs

Drive: Cross Recess H

Material: Case-Hardened Steel

Finish: Zinc Plated Cr3

Diameter: 5.5mm

Application: Timber to Light-Section Steel

Please Note:

Please select your required screw length and pack quantity before purchasing.

These screws are designed for suitable light-section steel applications. Check the manufacturer's drilling capacity and recommended material thickness before installation.

Zinc plating provides limited corrosion protection and is not intended as a substitute for a specialist exterior-grade coating.
